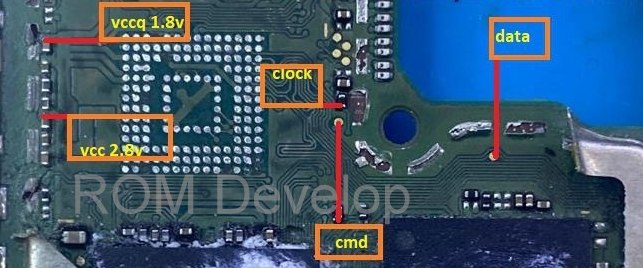

Huawei VNE-LX2 ISP frp remove

MT MART 5:17:00 PM

Huawei VNE-LX2 ISP frp remove





Checking security ...
Running:Format FRP Partition...
Z3X EasyJtag Software ver. 3.8.0.8
Loading eMMC GEN2 Firmware... IO: 2800 mV
Box S/N: D4EA7298AF3863F1, ,FW Ver.: 02.53
CMD Pullup Level:2103 mV
CMD Active Level:2331 mV
Box IO Level:2800 mV
CLK Rate:9000 kHz
Bus Width:1bit,SDR
HiPower mode is off!
---------- eMMC Device Information ----------
eMMC CID : 9B010059325031323800FCE417707949
eMMC CSD : D04F01328F5903FFFFFFFFEF8A40005D
eMMC Manufacturer ID: 009B , OEM ID: 0100
eMMC Date: 07/2006  Rev.0x0
eMMC NAME: Y2P128 , S/N: 4242806640
eMMC NAME (HEX): 593250313238
IC Name: Yangtze YMTC , YMEC8ATTB3AC3 Y2P128 ,
EMMC ROM1 (Main User Data)   Capacity: 119276 MB , 0xE8F6000 pages , 0x1D1EC00000 bytes
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 16384 kB
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
EMMC Password Locked: No
  Extended CSD rev 1.8 (MMC 5.1)

Boot configuration [PARTITION_CONFIG: 0x50] Boot from:ROM3 (Boot Partition 2).
Boot bus config [177]: 0x02 , width 8bits  , Partition config [179]: 0x50.
H/W reset function [RST_N_FUNCTION]: 0x01

High-capacity WP group size [HC_WP_GRP_SIZE: 0x00004000]
Partitioning Support [PARTITIONING_SUPPORT]: 0x07
 Device support partitioning feature
 Device can have enhanced tech.
Partitioning Setting [PARTITION_SETTING_COMPLETED]: 0x00
---------------------------------------------
Warning! Main and backup partition tables differ!
Warning! One or more CRCs don't match. You should repair the disk!
Caution: Found protective or hybrid MBR and corrupt GPT.
Real (Hardware) Disk/Image size: E8F6000 sectors 116.5 GiB
Soft (Partitioned) Disk/Image size: E8F5F80 sectors 116.5 GiB
Disk identifier (GUID): 00000000-0000-0000-0000-000000000000
Logical sector size: 0x200  bytes ,First/Last usable sector: 64,244277184
Partition info successfully found
Formatting FRP...
Detected LINUX(Android) FRP : 0x0001A08000 (1.0MB) formatting...
Done.
Detected LINUX(Android) CACHE : 0x0021000000 (104.0MB) , formatting...
Done.
Detected LINUX(Android) USERDATA : 0x0288000000 (106.353GB) , formatting...
Done.
Done.
Done.
Z3X EasyJtag Software ver. 3.8.0.8
Loading eMMC GEN2 Firmware... IO: 2800 mV
Box S/N: D4EA7298AF3863F1, ,FW Ver.: 02.53
CMD Pullup Level:2100 mV
CMD Active Level:2330 mV
Box IO Level:2800 mV
CLK Rate:9000 kHz
Bus Width:1bit,SDR
HiPower mode is off!
---------- eMMC Device Information ----------
eMMC CID : 9B010059325031323800FCE417707949
eMMC CSD : D04F01328F5903FFFFFFFFEF8A40005D
eMMC Manufacturer ID: 009B , OEM ID: 0100
eMMC Date: 07/2006  Rev.0x0
eMMC NAME: Y2P128 , S/N: 4242806640
eMMC NAME (HEX): 593250313238
IC Name: Yangtze YMTC , YMEC8ATTB3AC3 Y2P128 ,
EMMC ROM1 (Main User Data)   Capacity: 119276 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 16384 kB
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
EMMC Password Locked: No
  Extended CSD rev 1.8 (MMC 5.1)

Boot configuration [PARTITION_CONFIG: 0x50] Boot from:ROM3 (Boot Partition 2).
Boot bus config [177]: 0x02 , width 8bits  , Partition config [179]: 0x50.
H/W reset function [RST_N_FUNCTION]: 0x01

High-capacity WP group size [HC_WP_GRP_SIZE: 0x00004000]
Partitioning Support [PARTITIONING_SUPPORT]: 0x07
 Device support partitioning feature
 Device can have enhanced tech.
Partitioning Setting [PARTITION_SETTING_COMPLETED]: 0x00
---------------------------------------------
Backup saved: Y2P128_4242806640_20250115_1706.extcsd
Warning! Main and backup partition tables differ!
Warning! One or more CRCs don't match. You should repair the disk!
Caution: Found protective or hybrid MBR and corrupt GPT.
Real (Hardware) Disk/Image size: E8F6000 sectors 116.5 GiB
Soft (Partitioned) Disk/Image size: E8F5F80 sectors 116.5 GiB
Disk identifier (GUID): 00000000-0000-0000-0000-000000000000
Logical sector size: 0x200  bytes ,First/Last usable sector: 64,244277184
Partition info successfully found
------ Android information ------
Detected LINUX(Android) system_a : 0x0088803600 (2.343GB)
Unable to mount SYSTEM , code : 95
---------------------------------------------
------ Android information ------
Detected LINUX(Android) system_ext_a : 0x0120803600 (128.0MB)
Unable to mount SYSTEM , code : 95
---------------------------------------------
Detected USERDATA USERDATA : 0x0288000000 (106.353GB)
Unable to mount USERDATA , code : 95
Userdata Superblock contents::
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000     ................................;
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000     ................................;
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000     ................................;
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000     ................................;
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000     ................................;
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000     ................................;
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000     ................................;
 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000     ................................;
Done.
